VJET 1200 Printer

“An ultra versatile Thermal InkJet Printer adaptable to your packaging printing needs.”

Features

  • Touch Screen: 12” capacitive touch screen
  • Languages Support: Multi languages (English - default, Chinese, German, Japanese, Korean, Vietnamese...}
  • Free Template Design: Powerful template design with PC software
  • Font: Windows True Fonts
  • Database Support: SQL, ACCESS, EXCEL, TEXT, etc.
  • Barcode Support: CODE 11, CODE 2OF5 STANDARD, CODE 2OF5 INTERLEAVED, CODE 2OF5 IATA, CODE 2OF5 MATRIX, CODE 2OF5 DATA LOGIC, CODE 2OF5 INDUSTRY, EAN8, EAN13, UPC12, UPCA, UPCE, CODE 39, CODE 39 EXTENDED, EAN UCC128, CODABAR 2, CODE 128, GS1 DATABAR EXPANDED, GS1 DATAMATRIX, UCC128, QRCODE, DATAMATRIX, GS1 DATABAR EXPANDED STACKED, GS1 128, QRCODE 2005
  • Received Data from 3rd Party devices: USB 2.0, Ethernet RJ45 port

Technical Parameters

  • Printing Technology: HP TIJ2.5 (Hewlett Packard Thermal InkJet)

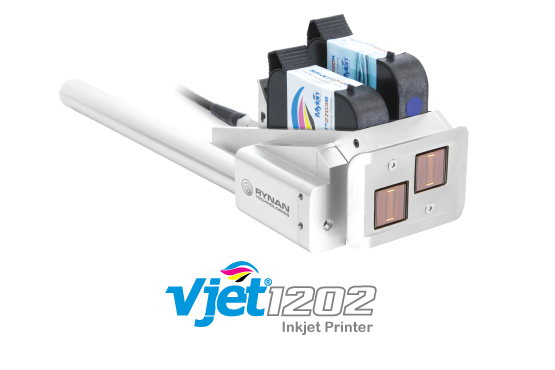

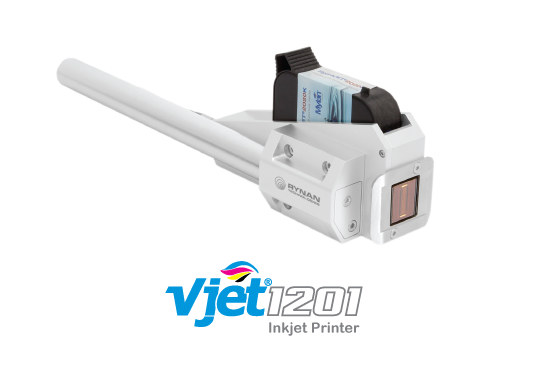

  • Printing Heights: 1201: 1~12.7mm (support up to 4 head), 1202: 1~25.4mm (support up to 2 head), 1204: 1~50.8mm (support only 1 head), Maximum cartridges supported: 4

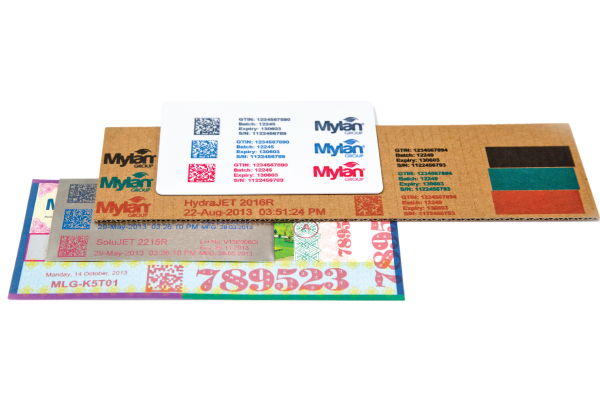

  • Printing Objects: Alphanumeric, Logos, Date/Time, Expiry date, Julian date, Shift Code, Counter/Box Lot, and Barcode
  • Printing Speed: 30 m/min @ 600 dpi, 92 m/min @ 300 dpi, Up to 600 dpi x 600 dpi
  • Density: 3 levels
  • Throw Distance: 1~5mm
  • Operation Interface: PC software on 12" touch screen
  • Port: Ethernet 100 Mbps port: communicate with PC, DP15 I/O: connect to alarm beacon kit, Photo sensor port, Encoder port
  • Ink Management: Automatically recognize the ink types (aqueous or solvent) and adjust printing parameters. Automatically nozzle switching and cleaning cartridges to extend lifetime. Ink consumption calculator
  • Mounting: Controller: with mounting bracket to keep controller anywhere, 90 degree rotation support. Print head: anti-shock mechanism, support side by side and upside down printing direction.
  • Ink Solution: HydraJET®2016, HydraJET®2020, HydraJET®2030 series - Aqueous ink for porous, semi-porous media and foods. SoluJET®2701, SoluJET®2704, SoluJET®2705 series - Solvent ink for semi and non-porous media. Support various colors of ink: Black, Red, Green, Blue. Support ink delivery system ink Feeder used to feed the ink to cartridges. Support volume: 35ml, 42ml, 400ml (bulk) and 700ml (bulk).
  • Power Supply: AC 100V-240V, 50/60Hz, 2.0A, Max consumption: 138W
  • Operating Environment: 5-60°C and 90% air humidity, non-condensing
  • Warranty: 12 months limited warranty
